Today I’m happy to announce that I’m making the first, Alpha test, version of Expert Controller Plus available for download.
If you would like to get involved with testing and provide feedback please drop me a message using the Contact page on this website.
Further information about Expert Controller Plus including how to download the software can be found in the Software and Support sections of this website.
Being able to control a relay using a TCP/IP network connection can be very useful and has many purposes including signalling, power control and monitoring. Today TCP/IP networking is the defacto networking technology used by almost all network capable technology. TCP/IP networks, with one in particular – the Internet – span the globe and are reachable from most locations by cable or radio (including satellite).
The Modbus protocol was first published in 1979 and has become the defacto standard for control and monitoring of industrial equipment. Sometime after its first publication a variant known as Modbus TCP was standardised for the exchange of Modbus messages over TCP networks. Modbus TCP and other variants are now available in small, inexpensive devices – such as those by Waveshare – to the mass market and thus hams.
In amateur radio there is a growing number of operators who choose to operate geographically remote from their radio equipment. Linking these two locations is inevitably a TCP/IP network. So, it should be no surprise that hams have a need to control equipment remotely and that Modbus and an abundance of inexpensive Modbus capable control devices can satisfy that need.
One such Modbus control device is the Waveshare Modbus POE ETH Relay (B) but there are many options available. It’s also quite possible to construct them oneself using a small computer such as a Raspberry Pi and software.

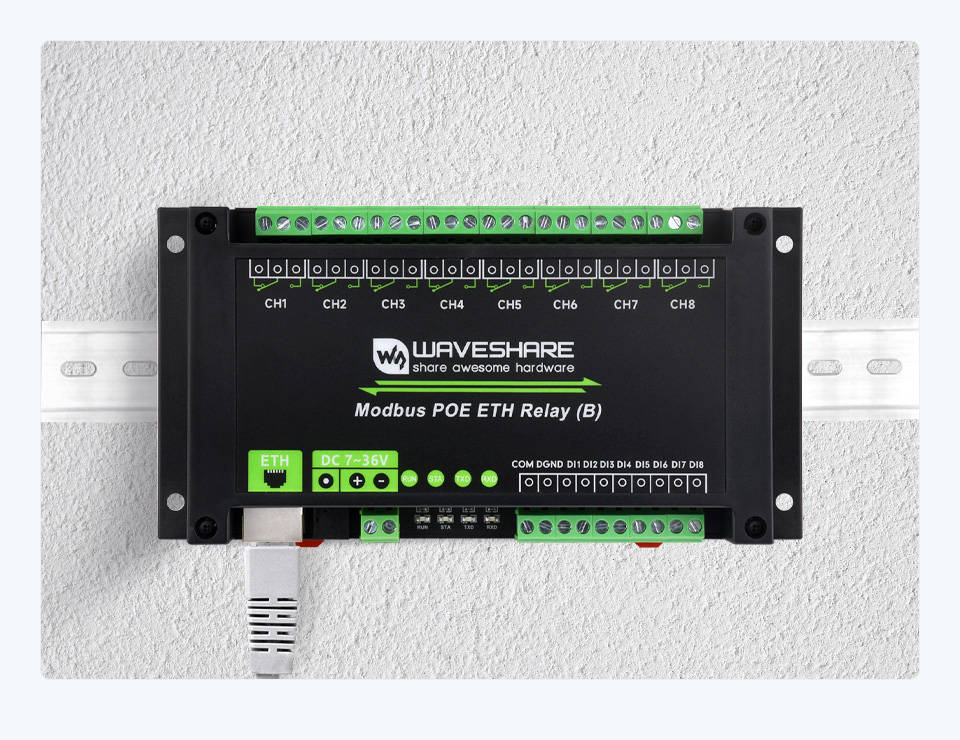

Waveshare Modbus POE ETH Relay (B)
Adding Modbus TCP support to Expert Controller Plus seemed like an obvious addition as it allows hams to wake/sleep their SPE Expert amplifiers from a remote location using a TCP/IP network.
The abundance of inexpensive Modbus capable controllers is the result of mass production with a focus on function with little attention to contributing and key components such as security. Connecting these to the Internet without protective measures is an awfully bad idea. I won’t labour that here as I’ve done so in previous posts and documentation. I’ll just say that however convenient doing so may seem and however tempted you feel – just don’t do it!
The remainder of this post focuses on the necessary configuration of the Waveshare Modbus POE ETH Relay (B) for use with macOS and Expert Controller Plus.
Waveshare Modbus POE ETH Relay (B)
The unit doesn’t come with a power supply so it’s either necessary to reuse an existing supply, make one yourself or power it from the Ethernet using POE. The latter is very convenient and makes a nice solution as should power fail, Ethernet and thus networking has probably also failed.
The unit has an embedded web server which permits its configuration. Great. However, not all parameters can be configured, particularly and disappointingly those necessary to enable Modbus TCP. Well, that’s what the Waveshare documentation leads me to believe but that documentation is a poor translation from Chinese to English so I’m not absolutely sure. From a macOS perspective that’s a problem as the Waveshare VCom software that enables access to all configuration is a Windows only application.
IPv4 address
The first item needing configuration was it’s IPv4 address. By default that is 192.168.1.200 and an IP address not reachable on my network. So it was connected using a short Ethernet cable directly to a laptop whose network port was manually allocated an 192.168.1.0/24 IPv4 address. That done, I could point a web browser at it’s default IPv4 address, log-in to its embedded web-server and change the IPv4 address allocation from Manual to DHCP. Allocating an address using DHCP is a personal choice as it has multiple advantages to a static, manual allocation but may not be appropriate for everyone.
With that and a restart, the unit was allocated an IPv4 address and became reachable on my network.

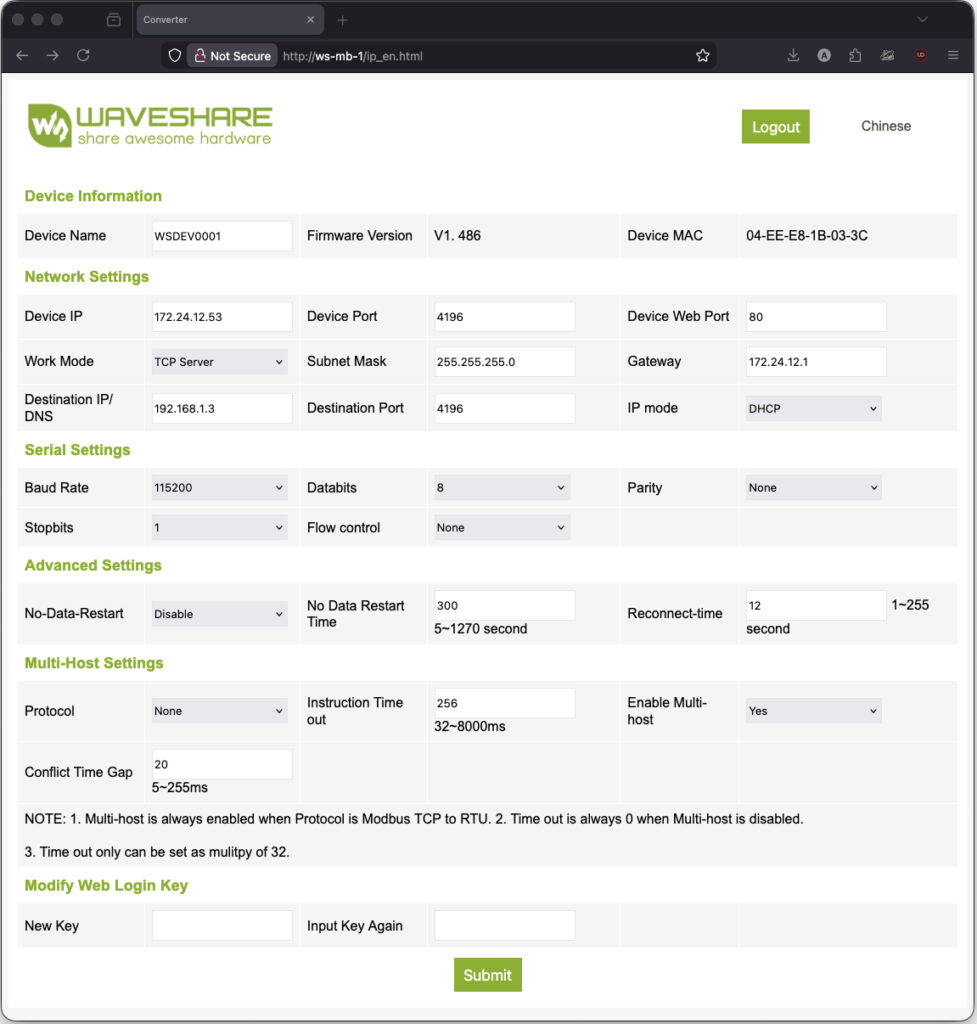

Waveshare Modbus POE ETH Relay (B) – Web configurator

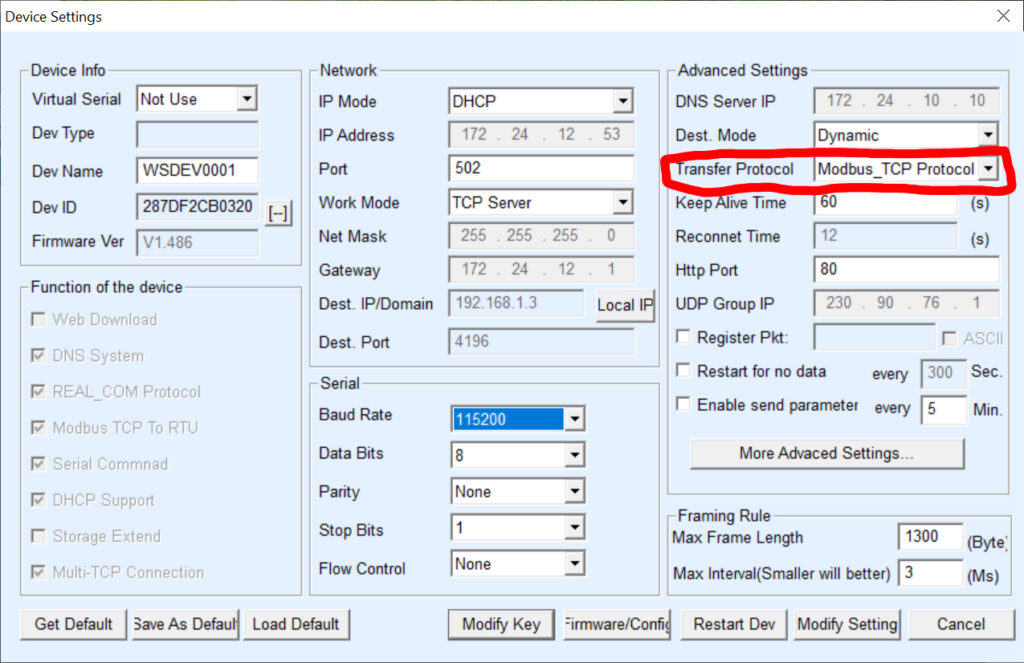

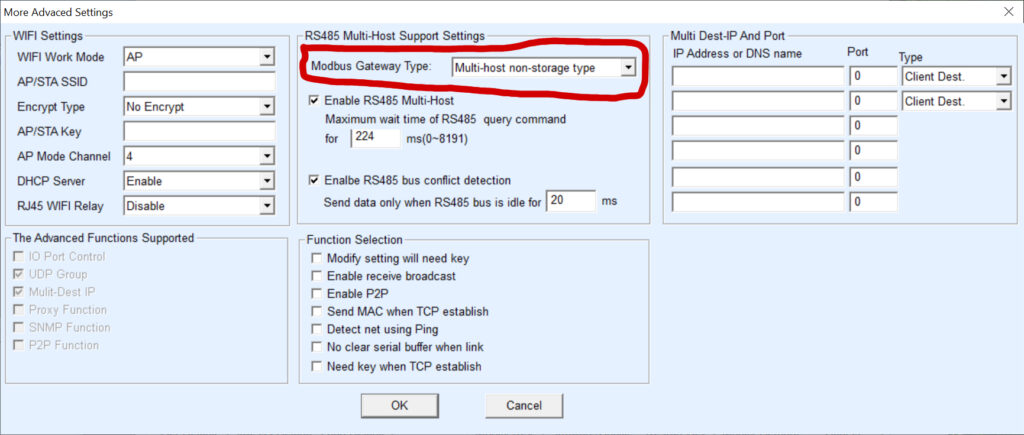

Microsoft Windows
Here, I’m almost completely Apple and Linux with just one old macBook running Windows for just this type of scenario – where running a Windows application is the only option. After downloading and installing the Waveshare VCom software I was able to adjust and then save the two items of configuration needed – see images below – to enable Modbus TCP. Once saved, the unit remembered the change so Windows was no longer required.
What remains is to connect the Waveshare relay to your SPE Expert amplifier and to pass a suitable signal (Voltage). Here the SPE Expert User manual for your amplifier is really helpful as it describes how to utilise pins 8 & 4 (REMOTE_ON, GND) of a CAT connector to “turn on and turn off the amplifier”. Instead of using the RS-232 DTR signal, implement a similar Voltage source which is switched by the Waveshare relay. The SPE Expert 1.5k-Taurus User manual V3.2, for pin 8, states: “Applying a voltage from 9 to 15 VDC, turns the amplifier ON.”.
Expert Controller Plus
The last configuration required is to enable Modbus TCP support in Expert Controller Plus, enable Wake and/or Sleep and to specify the Waveshare unit’s IPv4 address – or fully qualified domain name (FQDN). The defaults for Unit, Function, Register and Command should be appropriate for relay Channel 1. If a different relay Channel was used, select the corresponding Register.

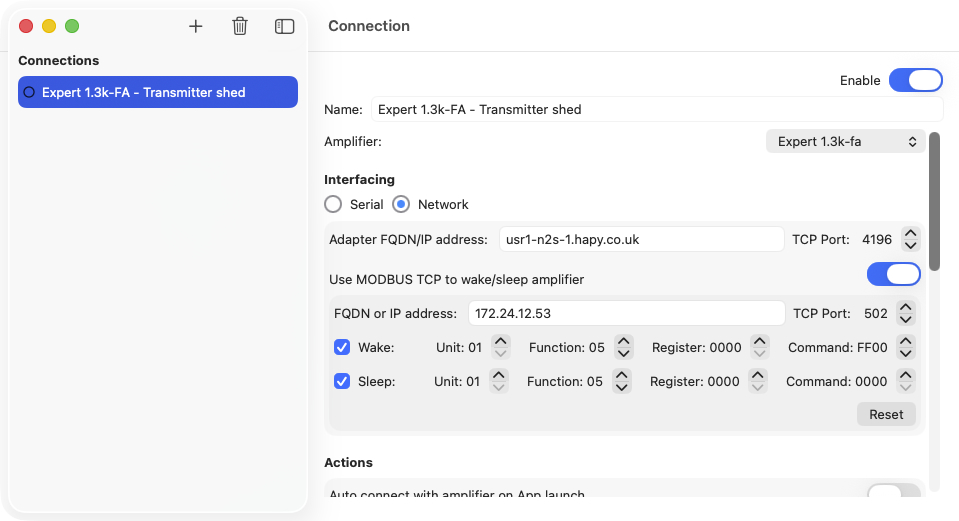

Expert Controller Plus – Modbus configuration
Now when a Connection is started or stopped in Expert Controller Plus the appropriate Wake or Sleep Modbus TCP message is sent.
Preview No. 6 (build 325) was made available this morning.
This will be the last Preview release as it contains the core features that will comprise the full public/production release next year.
Next, the project will move to a test phase and I’ll be making a Test version available in the coming weeks. This will have the same look/feel and runtime requirements as its earlier Preview’s but will appear in Apple TestFlight as a new and different application. I’ll add those currently testing the Preview to the Test release so TestFlight notifies you when it’s available. I don’t plan to remove the Preview so it will continue to be available until it reaches the term of its 90 day validity period.
The first Test release will include resolutions for defects identified in Preview No. 6 and will support persistant storage of settings/properties.
I hope the Preview releases have provided a useful insight into the development of Expert Controller Plus and thank you to all who have provided feedback.
Changes in this Preview fall into the following two broad categories.
General
On Standby and Operate LCD displays one or more bar-graphs are used to present power, Voltage etc. It was noted that when a ‘bar’ reached the right-side of its graph it was not displayed correctly. This has now been resolved. The defect is in Expert Controller also so, that will get fixed in an upcoming release.
Previously the Interface type, either ExpertDefault or Expert1kfa was specified on both a Connection and for Amplifier configuration. This led to it being defined in two places and thus created a potential conflict. It has now been removed from the Connection configuration so, it’s now only necessary to select the type of amplifier.
There have been numerous other small changes such as adding some ‘help’ style messages, preventing removal of Amplifiers when used by a Connection and adding a ‘Welcome’ window. I’ve also done a review of all Accessibility labels and hints resulting in many additions and updates.
SPE Expert 1k-fa
The SET Antenna support added in the last Preview has been amended to correctly display an information message on the LCD display. In the previous build it was either not shown or incorrectly shown.
Support for an audible / Apple Voiceover report announcing the configuration of an Expert 1k-fa is now supported.
Preview No. 5 (build 158) was made available earlier this evening. Changes in this Preview are primarily additions to Set mode support for the Expert 1k-fa amplifier but there is a cosmetic change to the LCD+Buttons window for all amplifier models.
The sections below present a description of the changes and these are followed by a gallery that contains Expert Controller Plus, LCD+buttons window, images for the Expert 1k-fa. Selecting an image generates a larger image.
This Preview is available, immedietly, to those who have previously expressed interest in Expert Controller Plus and the previous Preview should be automatically updated by Apple Test Flight. For others who would like to try Expert Controller Plus, help with testing and/or provide feedback, drop me a message using the Contact page on this website. I will add you to the group of testers. Note: To run the App you will need to install the Apple, Test Flight App, available for free from their App Store.
Expert 1k-fa
Support for SET now includes configuration for Antenna, CAT, Manual tune and Backlight display. With these additions, the entire SET configuration area is now supported. Support for the Alarm history report has also been included in this Preview.
So, assuming Expert 1k-fa support works – See Testing below – Expert Controller Plus now has full support for the full range of SPE Expert amplifiers.
LCD+Buttons Window
SPE Expert Controller uses a single ‘Display’ button which, depending on Standby/Operate mode, either performs the function fulfilled by the CAT button or the Display button in the SPE, Windows Term software. Until this Preview, Expert Controller Plus used the same approach. Howerver, as of this Preview, there are now two buttons: ‘CAT’ and ‘Display’. The two-button approach allows the UI design to be shared between the Expert 1k-fa and all other Expert amplifiers. The size of the window has not increased to encompass the new button; instead buttons have been rearranged and the ‘Backlight on/off’ button labels changed from text to icons as illustrated in the example below.
Preview releases of Expert Controller Plus are available to anyone who wishes to either have sight of the software or be involved in testing. Being invoved in testing enables you to provide feedback and to suggest features/changes that you’d like to see in the App when it gets to public release. For the Expert 1k-fa especially, this is of major significance as I don’t have access to a physical Expert 1k-fa so all software implementation has been accomplished using SPE documentation and a simulator I’ve also developed. But testing against ‘real’ Expert 1k-fa amplifiers is needed. Without it I have no way to know for sure whether Expert Controller Plus is actually working with that amplifier model. So if you would like to be involved in testing please do get in touch using the Contact form on this website.
What’s next
Next, I plan to create several short YouTube video’s that provide an overview of Expert Controller Plus. These will detail how it differs from the regular Expert Controller, its capabilities, setup and operation.
Today I’m releasing Preview No. 4. It includes numerous code improvements and bug fixes, some of which are visible in the UI, but most are not. For example it’s now not possible to delete a Connection when it’s in anything but an ‘interface closed’ state! Work on SET mode support for the Expert 1k-fa has also advanced. The SET mode menu is now displayed and items such as Contest mode, Beep, Temperature scale and Start in Operate/Standby may be configured. There is no support for Antenna, CAT, Manual tune and Backlight yet but I’ll be starting to advance these soon.
In the coming weeks I’ll be creating several video’s that tour the features and operation of SPE Expert Controller Plus. Once complete I’ll upload them to my YouTube channel and link them from this website.
UI Changes
At the top of windows such as the LCD window, Buttons window, LED window and LCD+Buttons window a drop-down list permits selection of the Connection for which information is displayed in the window. That drop-down list now works, selecting the first active Connection if only one Connection exists or ‘None’ if there are multiple active Connections. It also now automatically returns to ‘None’ if the Connection is stopped.
A ‘Support’ page has been added to the Application settings window. This details the location of the log file and underlying database which will be useful in future support scenarios.
Expert Controller Plus – Support information
There are other minor changes such as adding the small coloured icon that represents the state of a Connection in more places.
Expert 1k-fa
All features are being implemented as per my reading of the SPE Communication Protocol Specification V2 as I don’t have access to a physical Expert 1k-fa. Implementation is being tested against my Linux Expert 1k-fa Simulator and that gives me confidence that code should work with a ‘real’ physical Expert 1k-fa. If anyone would like to try this Preview with their Expert 1k-fa please drop me a message.
Preview No. 4, includes support for the various warning messages that an Expert 1k-fa can display. The image below presents just one of those.
Expert Controller Plus – Expert 1k-FA Warning message
As mentioned above, in SET mode configuration there is no support for options Antenna, Cat, Manual tune or Backlight. Selecting these is not recommended and will likely result in a need to close and restart the application. Other options in SET Mode appear to work well and can be navigated using the -/+ buttons as expected.
Expert Controller Plus – Expert 1k-FA SET Mode
Expert Controller Plus – Expert 1k-FA SET Mode
If you try this Preview with an Expert 1k-fa, ensure you select the Expert 1k-fa when creating a Connection. See the circled area in the image below.
Expert Controller Plus – Connection for a SPE Expert 1k-fa
Last week I had other commitments so available time has been a little constrained. However this afternoon I’ve released Preview No. 3 as it contains some important bug fixes and usability improvements.
If you would like to try preview releases of SPE Expert Controller Plus please drop me a message using the Contact page of this website. Just a reminder Previews provide an insight of the application during its development; they are not intended to be complete or fully working.
a) Sleep and Awake. Connections and Groups can now be slept and awoken without Start/Stop of amplifier connections. There are some constraints on what is possible. So, Sleep sends the Off command and if connected using a serial/usb interface the RTS signal is de-asserted regardless of how it’s configured for the Connection. Wake only wakes a serial/usb interface connected amplifier and only when the Connection is configured so that ‘Raise RTS on Connect’ is selected/ticked.
b) The ‘Enabled’ toggle for each Connection is now recognised. Connections not enabled no longer appear in the list of Connections that may be started/stopped.
c) The RF Information and Health Information windows have been removed as they repeated information available elsewhere in the App.
This morning Preview 2 was released to those who have requested to be part of the preview and test programme for SPE Expert Controller Plus. If you would like to join that programme, drop me a message using the Contact form on this website.
Preview 2 changes are primarily for the Expert 1k-fa. Functionality for other amplifiers remains pretty much unchanged. For the Expert 1k-fa support has been added for Standby, Operate, CAT Report and Firmware report modes. Other Expert 1k-fa functionality such as ‘Set’ configuration is yet to be implemented but is on the roadmap.
Implementation of functionality to support the Expert 1k-fa would ideally have used a real/physical amplifier however, as that is not available, a simulator was developed as described in earlier news postings. Against this simulator the actual Windows SPE Term application for the Expert 1k-fa was tried and found to work well. Thus I have confidence that my reading of the interface specification and implementation are good. However only by testing with a real/physical amplifier will that be known for sure so, feedback from those Expert 1k-fa testers is much appreciated!
Next on the list are some of the defects and issues that I know exist; I’m expecting subsequent previews will include changes that are noticeable to all models of Expert amplifiers. One of the changes I’m considering is removal of the Health and RF Information windows as I’m not convinced they add ‘value’ to the application as the information is pretty much available elsewhere. Let me know what you think about that.
Since the last update, my Expert Simulator software has advanced sufficiently to now simulate the core capabilities of the SPE Expert 1k-fa amplifier. Using simulation has enabled further work on SPE Expert Controller Plus and advancement of its Expert 1k-fa support.
The LCD, LED and button windows of SPE Expert Controller Plus appear to be working but other windows such as RF Information and Health need further work. The ‘Set’ configuration option is not yet implemented and there is no support yet for Alarms/Warnings. So there are still key capabilities yet to be implemented but with Standby, Operate, Tune, Cat and Firmware reports working support for the Expert 1k-fa is coming together.
Support for all other Expert amplifiers is well advanced although there are still capabilities to add plus, overall, there are a good number of defects that need resolving.
Preview 2 is getting close and I’d expect it to be ready by the end of next weekend. Fingers-crossed. 🙂 Assuming the Expert 1k-fa support actually works when connected to a real/physical Expert 1k-fa I expect to spend time fixing known defects and smoothing some of those rough-edges for Preview 3. Subsequent previews will add some of the missing Expert 1k-fa capabilities.
The images in this post are of the SPE Expert Controller Plus, LCD and Buttons window – I really need a better name – captured tonight to communicate how the Expert 1k-fa is looking.
If you would like to try a Preview of SPE Expert Controller Plus, drop me a message using the Contact form on this website.
Finally, thanks to those who are already running and providing feedback.
Over the last couple of weeks I’ve been progressing the development of an Expert amplifier simulator as mentioned in previous posts. It’s starting to take shape nicely and is capable of simulating Standby and Operate modes for all but the Expert 1k-fa. Its support is the next thing I’ll be advancing.
Right now I really need to simulate multiple simultaneous connections to stress test the data comms components of SPE Expert Controller Plus so I’m focused on implementing simulation of Standby and Operate modes. Other features such as Set mode are less important to me at this time.
The simulator is a C++ application written for Linux and implements a TCP socket server thus allowing it to simultaneously simulate a pretty much unlimited number of amplifiers. Each connection/amplifier simulated has its own UDP command channel over which many parameters of the simulation many be adjusted. For example, switched into Transmit mode, Operate mode, Forward and Reverse power set etc.
The good news is that SPE Expert Controller Plus has run flawlessly with the 7 simultaneous connections I’ve so far tried and given the low CPU usage I’m happy it would handle many more. I’m aware that serial/USB comms is not as CPU efficient as TCP/IP comms but I don’t foresee any issues. The simulator has identified a few items that don’t seem to be working just yet in SPE Expert Controller Plus so it’s definetly proving valuable.
Below are some screen captures from a little earlier this evening that give a flavour of the new App and some of its windows. The text ‘cmd: 5117’ etc is the UDP command channel on which the simulator is listening for commands.
SPE Expert Controller Plus – Connected to six simulators
SPE Expert Controller Plus – New windowsSPE Expert Controller Plus – Overview and management windows
The screen capture below is of the usage/help information output by the simulator. I’m including it here just to further describe its capabilities.
The first ‘Preview’ release of SPE Expert Controller Plus is now available to those who have expressed interest in my new macOS application. If you would like to give it a try, drop me a message using the Contact form.
This first ‘Preview’ was built on 18-Sep but has taken several days to transit the notoriously painful Apple App Store review process – anyone who has submitted Apps to the App Store will know what I mean – so, as I write this, there is already a later build that contains much improved support for the Expert 1k-fa which I will release in the coming days. For those trying the ‘Preview’, Test Flight should notify you when an update becomes available.
This next build should present the Expert 1k-fa LCD panel just as it looks on the amplifier and how it looks for other Expert amplifiers within the App already. For now capability is limited to sending all commands and just the main Standby and Operate displays but I expect to enrich this later. However, it’s difficult to test without access to an Expert 1k-fa.
As not having multiple physical Expert amplifiers including a 1k-fa is a challenge to development, I’m going to pause further work on the new App whilst I develop a simulator that will allow simulation of any Expert amplifier. It doesn’t need to be a fully capable simulator that reflects all functionality just sufficiently capable to test interfacing and, for the 1k-fa, the LCD display. It will be a Linux application using a TCP socket server design so that it can easily support multiple connections and thus simulate multiple amplifiers. Later, as the need arises I’ll add USB/serial support.
Once the simulator is done I’ll be in a much better position to test and further develop SPE Expert Controller Plus.
